| Place of Origin: | Foshan, Guangdong, China |
|---|---|
| Brand Name: | Customized |
| Model Number: | XT-0001 |
| Minimum Order Quantity: | 1000 |
| Delivery Time: | 25-35 working day |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/day |
| Filter Type: | F5 F6-F8 F8-F9 H11 H12 H13 H14 | Filter Material: | Non Woven Fabric + Wet Skeleton + Electrostatic Melt Blown Filter Layer |
|---|---|---|---|
| H12 Filtration Efficiency: | ≥99.5% | H13 Filtration Efficiency: | ≥99.97% |
| H12 Resistance: | 22PAA±2PA | H13 Resistance: | 30PA±2PA |
| High Light: | Pm2.5 Hepa Air Filter,H12 Hepa Air Filter,Home Pleated Panel Air Filters |
||

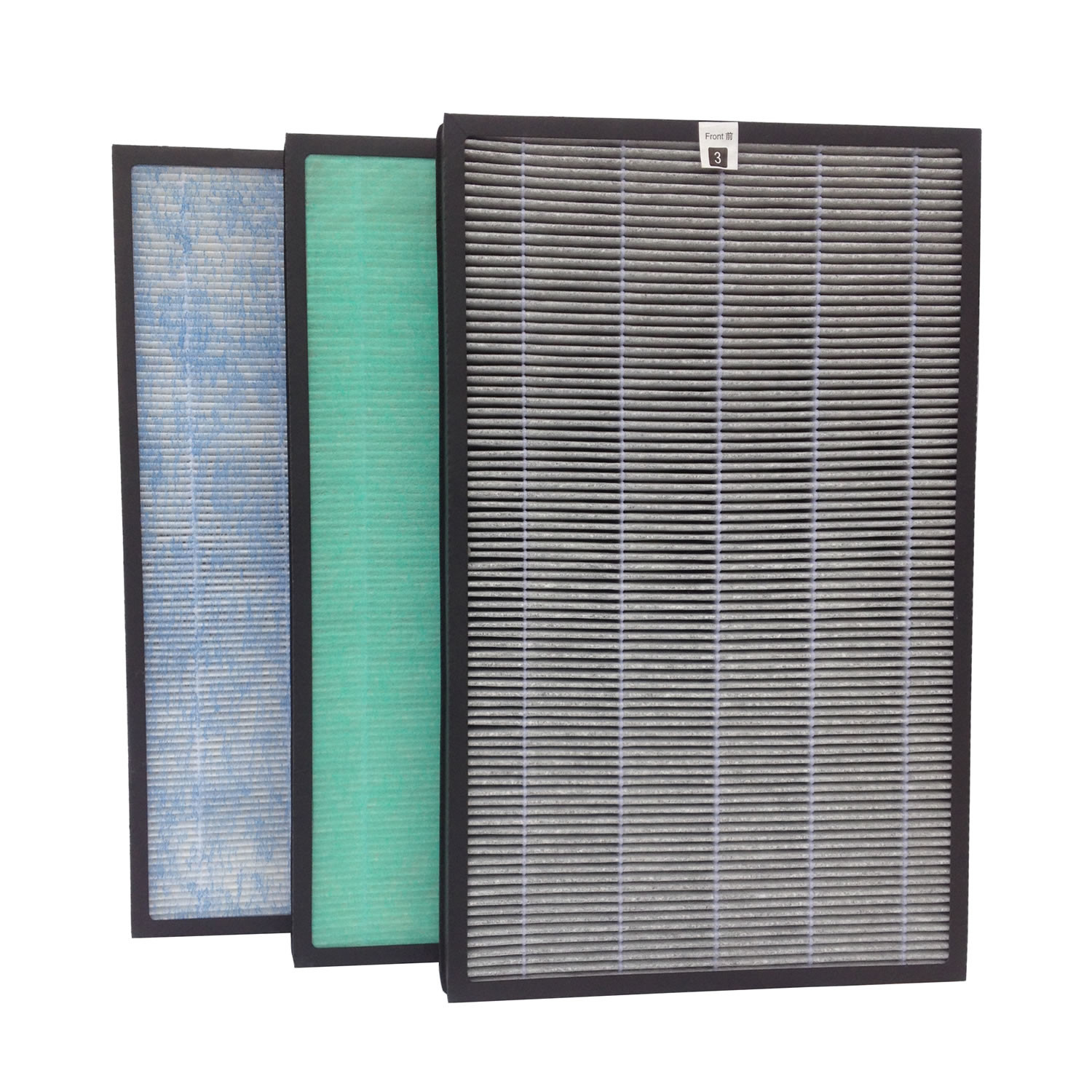

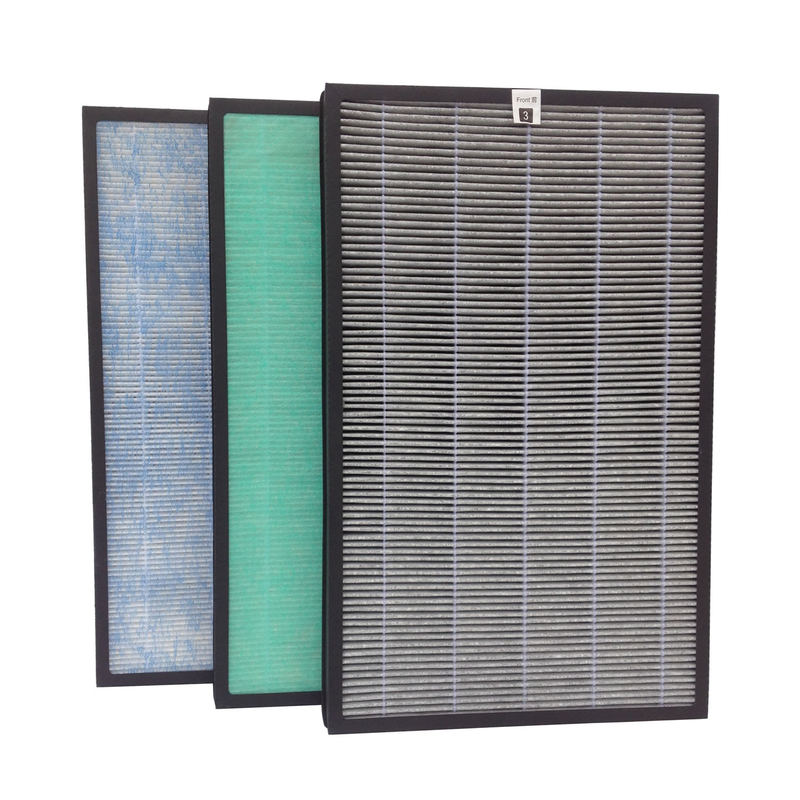

Air Purifier Hepa Air Filter Room Pm 2.5 H12 H13 H14 Home Panel
Product Description:
| level | HEPA filter material structure composition | |
| F5 | 2PA non-woven fabric 60g wet skeleton + composite electrostatic melt blown filter layer with 50% efficiency 20g/m ²= Total gram weight 80g/m ² | |
| F6-F8 | 2PA non-woven fabric 60g wet skeleton + composite 65% efficiency electrostatic melt blown filter layer 20g/m ²= Total gram weight 80g/m ² | |
| F8-F9 | 2PA non-woven 60g wet skeleton + electrostatic melt blown filter layer with composite efficiency of 98% 20g / M ²= Total gram weight 80g/m ² | |
| H11 | 2PA non-woven 60g wet skeleton + composite 99% efficiency electrostatic melt blown filter layer 20g/m ²= Total gram weight 80g/m ² | |
| H12 | 2PA non-woven 60g wet skeleton + composite electrostatic melt blown filter layer with 99.5% efficiency 25g/m ²= Total gram weight 85g/m ² | |
| H13 | 2PA non-woven 60g wet skeleton + composite electrostatic melt blown filter layer with 99.97% efficiency 25g/m ²= Total gram weight 85g/m ² | |
| H14 | 2PA non-woven 60g wet skeleton + composite electrostatic melt blown filter layer with 99.998% efficiency 25g/m ²= Total gram weight 85g/m ² | |
Filter production structure configuration
Customers can choose at will
1. HEPA within the range of 6-95mm of material folding height + note 1-inch or 2-inch or 3-inch glue line on HEPA surface
(inject glue according to the customer's requirements. 1 inch is equal to the distance between glue and glue is 25.4mm)
2. After HEPA side full sealing welt
3. Assemble the paper frame (the frame includes black cardboard frame, white cardboard frame and color printing frame)
4. Sealing strip (the thickness of sealing strip can be 2mm, 3mm and 5mm) (this is optional for customers)
5. Handle (PET non-woven fabric with ribbon)
Main purification objects
Haze, pollen, smoke, dust, hair fine particles, aerosols, particles above pm0.3um, and other harmful suspended particles. Test basis: gb-t6165-2018 air volume test parameter: 32l/min
What is a HEPA filter?
HEPA is a type of pleated mechanical air filter. It is an acronym for "high efficiency particulate air [filter]" (as officially defined by the U.S. Dept. of Energy). This type of air filter can theoretically remove at least 99.97% of dust, pollen, mold, bacteria, and any airborne particles with a size of 0.3 microns (µm). The diameter specification of 0.3 microns responds to the worst case; the most penetrating particle size (MPPS). Particles that are larger or smaller are trapped with even higher efficiency. Using the worst case particle size results in the worst case efficiency rating (i.e. 99.97% or better for all particle sizes).
All air cleaners require periodic cleaning and filter replacement to function properly. Follow manufacturer's recommendations on maintenance and replacement.
Minimum Efficiency Reporting Values, or MERVs, report a filter's ability to capture larger particles between 0.3 and 10 microns (µm).
This value is helpful in comparing the performance of different filters
The rating is derived from a test method developed by the American Society of Heating, Refrigerating, and Air Conditioning Engineers (ASHRAE)
The higher the MERV rating the better the filter is at trapping specific types of particles.
